W&H Piezomed Module Plus II standalone unit featuring the stackable side connection interface for Implantmed integration

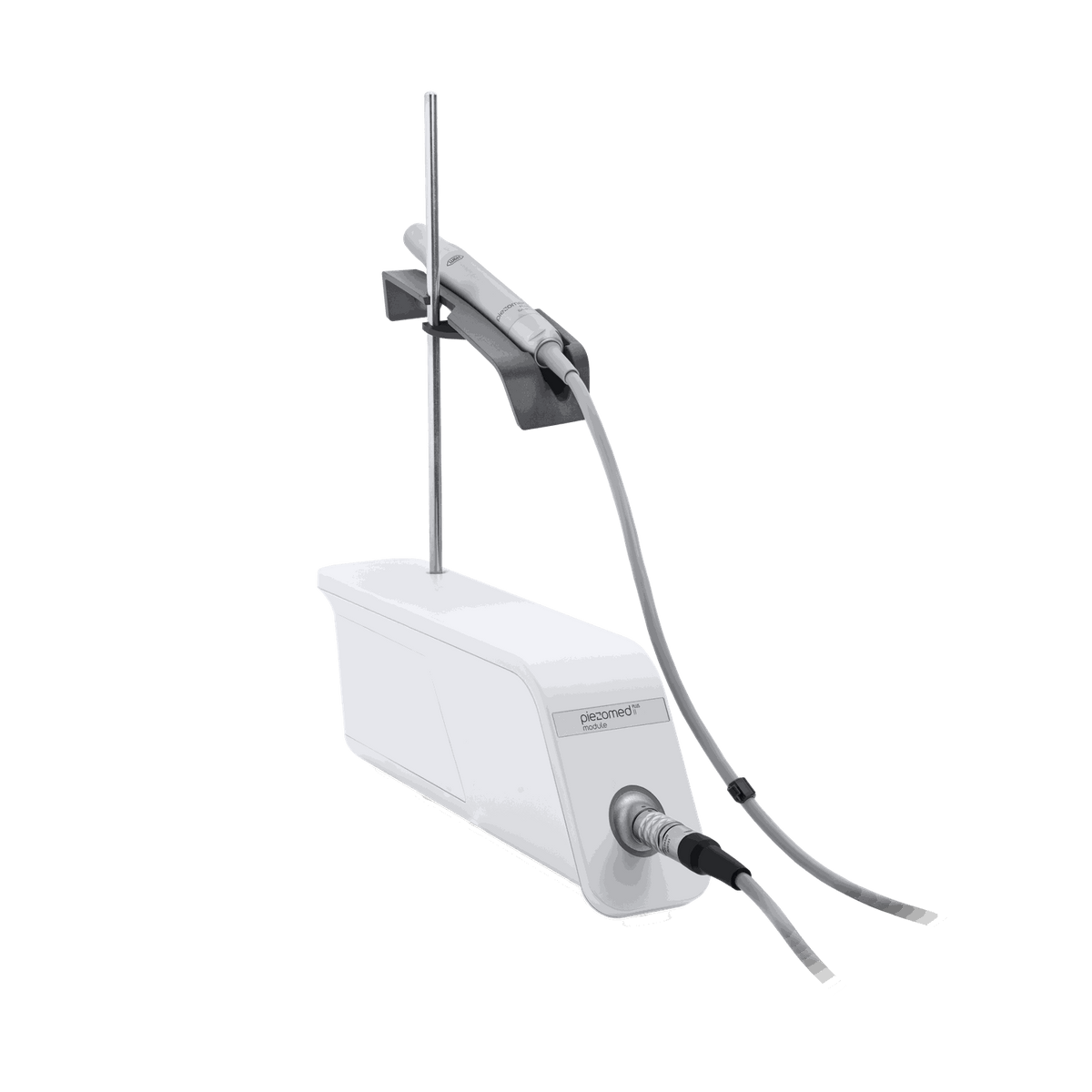

Front angled view of the modular W&H Piezomed Plus II showcasing the secure handpiece cable connection

W&H Piezomed module Plus II

Name: W&H Piezomed module Plus II
Brand: Plovio
SKU: 90000421
Price: 7199.0 USD
Availability: InStock
Rating: 4.5 (10 reviews)

$7,199.00

The Piezomed module Plus II extends the capabilities of the Implantmed Plus II with advanced piezosurgery functionality, combining proven ultrasonic technology with intelligent digital assistance. As an integrated module for oral surgery, implantology, maxillofacial surgery and periodontics, it enables clinicians to perform demanding procedures with greater flexibility, control and workflow efficiency.

Designed to integrate seamlessly into the Implantmed Plus II, the Piezomed module Plus II delivers a streamlined two-in-one solution without the need for additional cables or a separate power supply. Its intelligent instrument management, automatic instrument detection and dedicated instrument library help simplify setup and support precise parameter selection for different clinical applications. The integrated Light-Guide provides immediate visual orientation, while the modular interface allows users to switch between implantology and piezosurgery within one connected system. With up to 24 W of ultrasonic power and an operating frequency of 22–35 kHz, the Piezomed module Plus II is designed to support a broad range of demanding surgical procedures while maintaining an efficient, connected workflow.

W&H Reference #90000421

Bulk discount

To receive a quote via link here

Free Shipping

Free Ground Shipping over $150

Warranty

1 Year Manufacture Warranty

Payment Methods

Product Brochure Download

Instruction for Use Manual Download

Connected Digital Workflow: Integrate piezosurgery into the connected Implantmed Plus II workflow. The module works with the system's digital interface, including user profiles, treatment documentation and ioDent® connectivity, supporting a more streamlined approach to treatment management and documentation.

Clinical Applications

The Piezomed module Plus II is a versatile ultrasonic surgical system for oral surgery, implantology, maxillofacial surgery and periodontics, supporting a broad range of procedures involving hard and soft tissue, including:

Surgical procedures involving dental hard and soft tissue
Implantology procedures requiring ultrasonic bone and tissue treatment
Periodontal surgical procedures
Maxillofacial surgical procedures
Other demanding oral surgical procedures requiring controlled ultrasonic instrumentation

Specification

Maximum power output:

24 W

Operating frequency:

22 – 35 kHz

Coolant flow rate at 100 %:

at least 90 ml/min

Operating mode:

S3 (80 s ON / 330 s OFF) maximum 4 repeats

Dimensions in mm (height x width x depth):

99 x 93 x 283

Weight:

755 g

In the Box

Module SP-210 M
Handpiece SA-40 L with light and 1.8 m cable including 5 clips
Stand
Universal support

Instrument changer
Mains cable
Disposable irrigation tubings con Y-manifold (6 pcs.)
