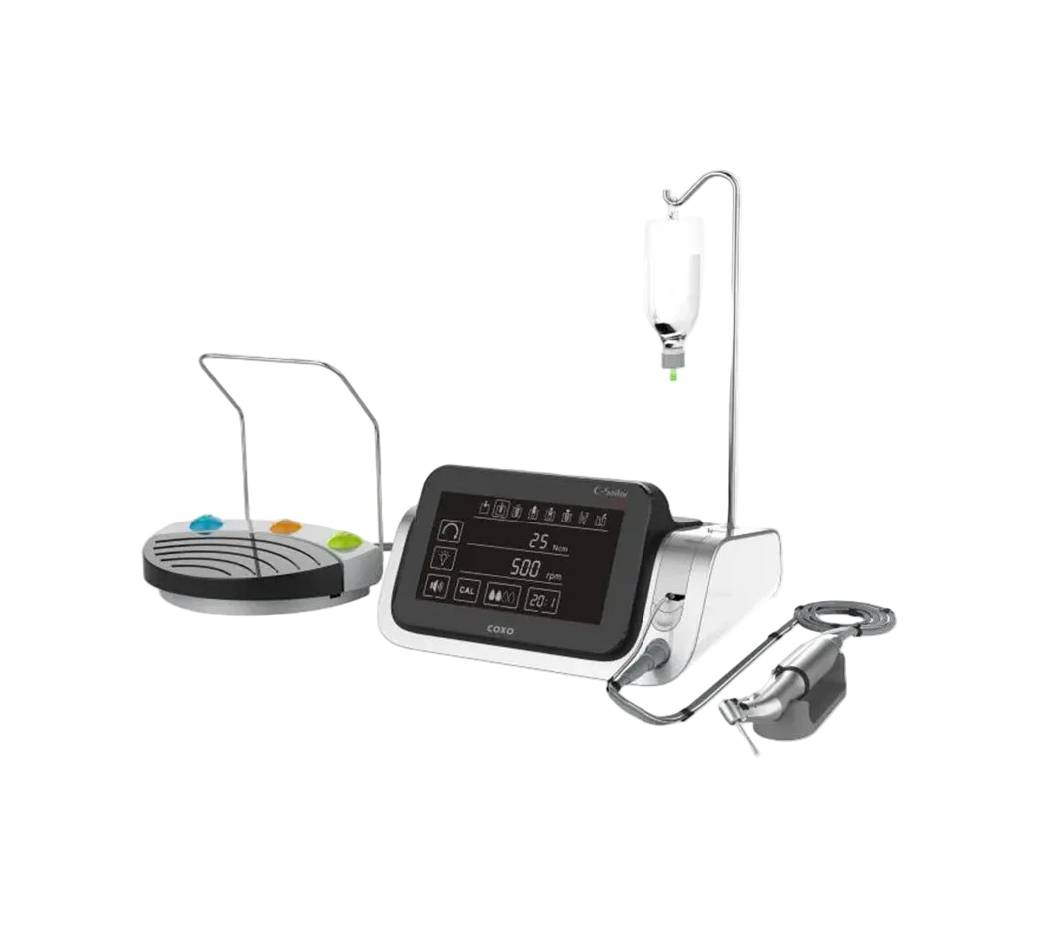

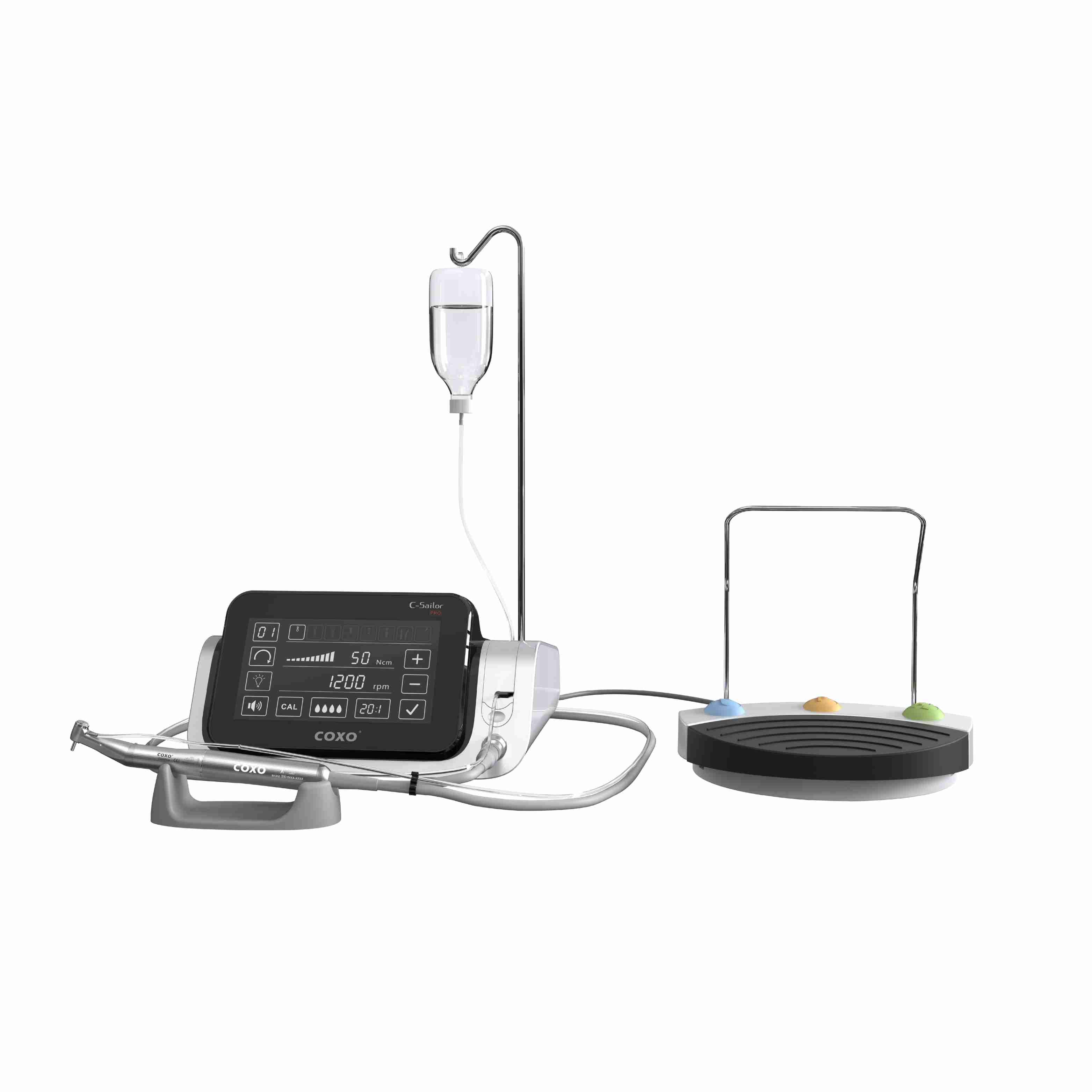

COXO C-Sailor Pro: Advanced Dental Implant Motor System

Name: COXO C-Sailor Pro: Advanced Dental Implant Motor System
Brand: COXO
Price: 2999.00 USD
Availability: InStock

$2,999.00

The COXO C-Sailor Pro is a high-performance, digital dental implant motor system designed to deliver unparalleled efficiency, stability, and safety during complex surgical procedures. Engineered for the modern oral surgery practice, it seamlessly guides the clinician through the entire implant placement workflow—from precise initial drilling to the final, high-torque implant insertion.

At the core of the C-Sailor Pro is a robust surgical brushless motor capable of delivering up to 80 Ncm of torque, ensuring stable and reliable implant placement even in the densest bone conditions (D1/D2). The unit features a large, full-color touchscreen with a streamlined graphical interface, eliminating tedious manual setup and allowing you to visualize treatment parameters at a glance. Combining intuitive digital controls, daylight-quality LED illumination, and heavy-duty mechanical reliability, this system is engineered for exact clinical precision.

Bulk discount

To receive a quote via link here

Free Shipping

Free Ground Shipping over $150

Warranty

1 Year Manufacture Warranty

Payment Methods

Product Brochure Download

Instruction for Use Manual Download

Intuitive Touchscreen Interface: The large, easy-to-wipe glass touch display features clear graphical representations of the surgical workflow, allowing for rapid, error-free program selection and parameter adjustments.

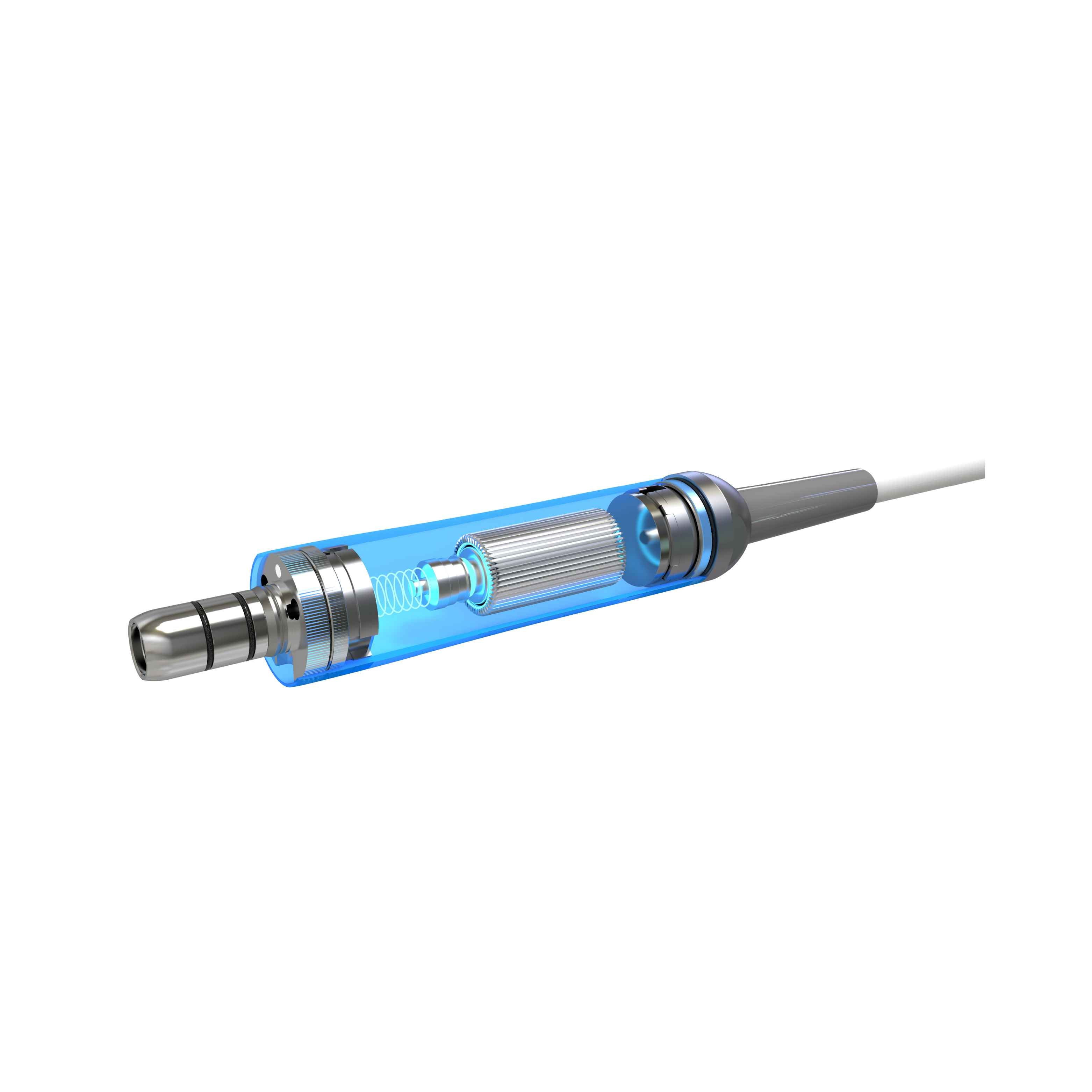

High-Performance Brushless Motor: Delivers a powerful maximum torque of 80 Ncm (when paired with a 20:1 contra-angle) and a broad speed range up to 40,000 RPM, offering smooth cutting efficiency and strict torque control.
Brilliant LED Illumination: The integrated lighting system provides up to 30,000 lux of brightness directly to the surgical site, significantly improving visibility in heavily shadowed posterior regions.

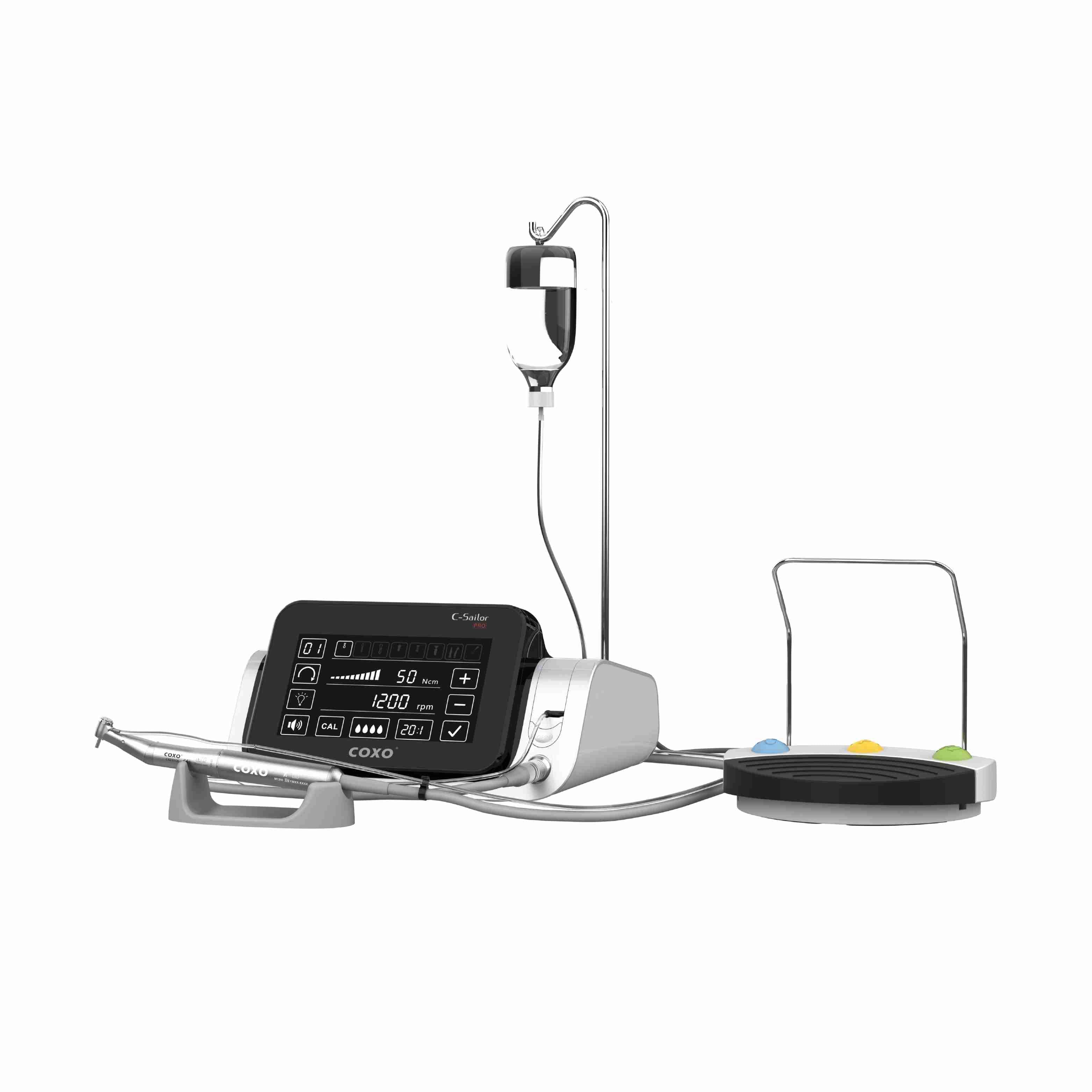

High-Capacity Irrigation System: The built-in, quiet water supply pump provides consistent cooling with 4 adjustable flow levels (reaching up to 150 ml/min) to effectively prevent thermal bone necrosis during high-speed osteotomies.

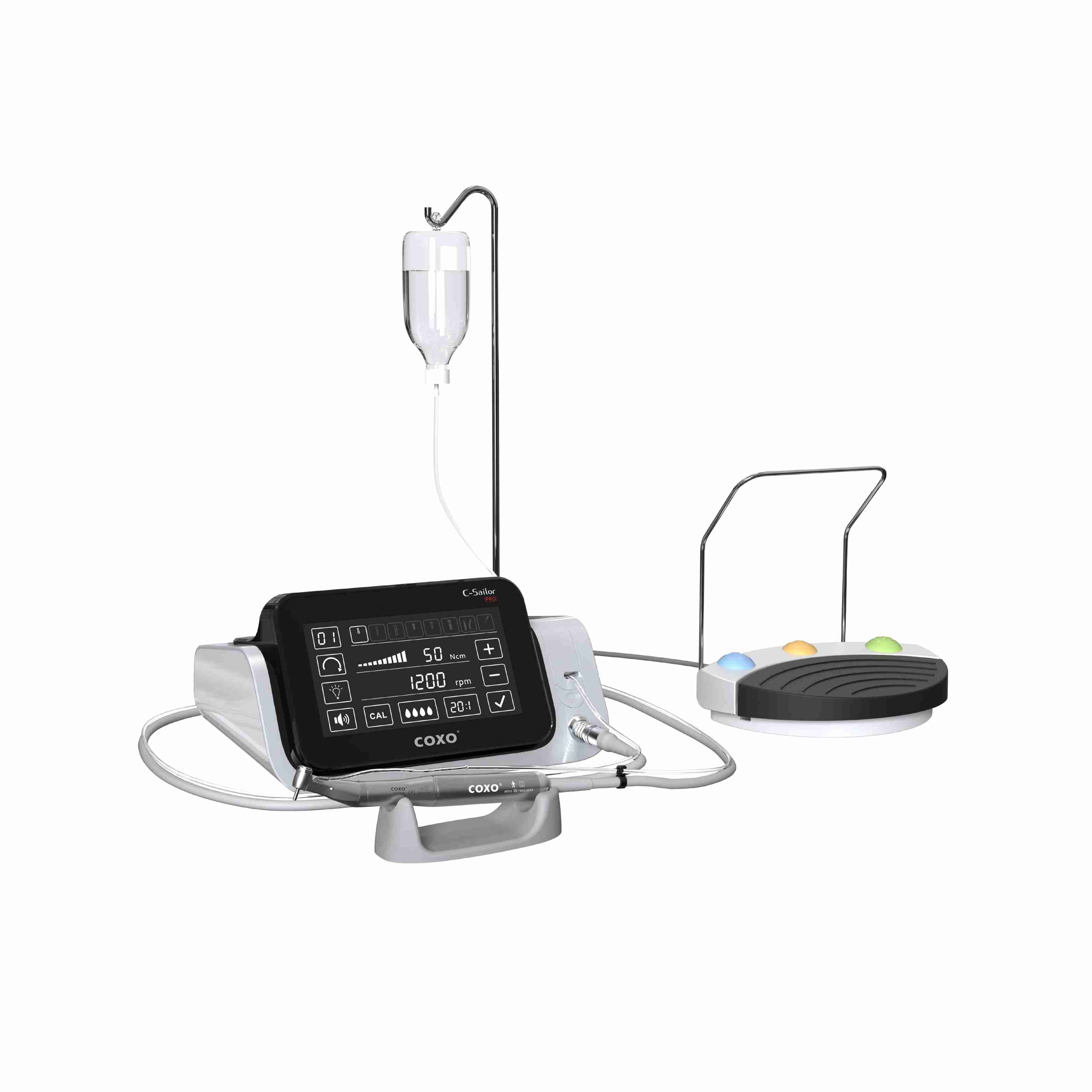

Multifunctional Foot Controller: Allows for complete hands-free operation of the motor speed, rotation direction, coolant flow, and program selection, ensuring the sterility of the surgical field remains entirely uncompromised.
Maximum Hygiene & Durability: Both the lightweight, shortened motor and its cable are fully sterilizable at high temperatures and pressure, meeting rigorous clinical infection control standards.

Clinical Applications

Dental implant site preparation and controlled insertion
Sequential osteotomy drilling and tapping workflows
Maxillofacial and minor oral surgery
Bone grafting, ridge splitting, and sinus lift procedures

Intuitive Touchscreen Interface: The large, easy-to-wipe glass touch display features clear graphical representations of the surgical workflow, allowing for rapid, error-free program selection and parameter adjustments.
High-Performance Brushless Motor: Delivers a powerful maximum torque of 80 Ncm (when paired with a 20:1 contra-angle) and a broad speed range up to 40,000 RPM, offering smooth cutting efficiency and strict torque control.
Brilliant LED Illumination: The integrated lighting system provides up to 30,000 lux of brightness directly to the surgical site, significantly improving visibility in heavily shadowed posterior regions.
High-Capacity Irrigation System: The built-in, quiet water supply pump provides consistent cooling with 4 adjustable flow levels (reaching up to 150 ml/min) to effectively prevent thermal bone necrosis during high-speed osteotomies.
Multifunctional Foot Controller: Allows for complete hands-free operation of the motor speed, rotation direction, coolant flow, and program selection, ensuring the sterility of the surgical field remains entirely uncompromised.
Maximum Hygiene & Durability: Both the lightweight, shortened motor and its cable are fully sterilizable at high temperatures and pressure, meeting rigorous clinical infection control standards.

Specification

Max. torque:

80 Ncm

Mains voltage:

100 – 130 V, 50 / 60 Hz

Maximum power output:

130VA

Motor speed range in the rated voltage range:

300 – 40,000 rpm

Length of Cable:

1.8 meter

Light illumination:

30000 lux

Coolant flow rate at 100 %:

150 ml/min

Dimensions in mm (height x width x depth):

240 x 380 x 260

In the Box

C-sailor Console
Motor with Cable
Implant handpiece
Wired Foot Pedal

Irrigation Stand
Motor Holder
Irrigation Tubings
Instruction for Use Manual
