W&H Implantmed Classic: Reliable & Powerful Dental Implant Motor

W&H Implantmed Classic: Reliable & Powerful Dental Implant Motor

Name: W&H Implantmed Classic: Reliable & Powerful Dental Implant Motor
Brand: W&H
Price: 5500.00 USD
Availability: InStock

$5,500.00

The W&H Implantmed Classic delivers the perfect balance of raw power and clinical simplicity. Designed for daily use in oral surgery and implantology, this high-performance dental implant motor allows you to focus entirely on the patient rather than complex equipment settings.

With its exceptionally short and lightweight electric motor, the Implantmed Classic pairs seamlessly with ergonomically shaped W&H contra-angle handpieces. This perfect balance ensures fatigue-free operation, even during lengthy and complex osteotomies. By combining an intuitive interface with robust mechanical power, it is the ideal implant motor for practices demanding efficiency, safety, and consistent clinical outcomes.

W&H Reference #90000270

Bulk discount

To receive a quote via link here

Free Shipping

Free Ground Shipping over $150

Warranty

1 Year Manufacture Warranty

Payment Methods

Product Brochure Download

Instruction for Use Manual Download

Automatic Thread Cutter Function: A critical feature for inserting implants into dense bone. The thread cutter minimizes bone compression during insertion, preventing bone necrosis and promoting stress-free osseointegration.
Exceptional Power & Speed: The EM-19 electric motor delivers an impressive 5.5 Ncm of motor torque, effortlessly driving through the toughest bone qualities.
Precise Torque Control: Ensure the safe insertion of all implant types with a strictly controlled torque range of 5 to 70 Ncm at the rotary instrument.
Intuitive Operation: The user-friendly interface features a high-contrast display with an auto-backlight, allowing for quick visual checks. All programs can be easily adjusted via the console or operated "blind" using the included foot control.
Fatigue-Free Ergonomics: The shortened motor design shifts the center of gravity closer to the user's hand, significantly reducing wrist strain during extended surgical procedures.
Maximum Hygiene: The motor and its 1.8m cable are fully thermo washer disinfectable and sterilizable, ensuring uncompromising infection control.

Clinical Applications

Implant site preparation and controlled implant insertion
Osteotomies and sequestrotomies
Apical resections and germectomies
Hemisections and extraction of wisdom teeth
Bone modeling and smoothing

Automatic Thread Cutter Function: A critical feature for inserting implants into dense bone. The thread cutter minimizes bone compression during insertion, preventing bone necrosis and promoting stress-free osseointegration.
Exceptional Power & Speed: The EM-19 electric motor delivers an impressive 5.5 Ncm of motor torque, effortlessly driving through the toughest bone qualities.
Precise Torque Control: Ensure the safe insertion of all implant types with a strictly controlled torque range of 5 to 70 Ncm at the rotary instrument.
Intuitive Operation: The user-friendly interface features a high-contrast display with an auto-backlight, allowing for quick visual checks. All programs can be easily adjusted via the console or operated "blind" using the included foot control.
Fatigue-Free Ergonomics: The shortened motor design shifts the center of gravity closer to the user's hand, significantly reducing wrist strain during extended surgical procedures.
Maximum Hygiene: The motor and its 1.8m cable are fully thermo washer disinfectable and sterilizable, ensuring uncompromising infection control.

Specification

Max. torque:

70 Ncm

Mains voltage:

100 – 130 V, 50 / 60 Hz

Maximum power output:

70 W

Maximum torque at motor:

5.5 Ncm

Motor speed range in the rated voltage range:

300 – 40,000 rpm

Length of Cable:

1.8 meter

Coolant flow rate at 100 %:

at least 90 ml/min

Dimensions in mm (height x width x depth):

100 x 235 x 240

In the Box

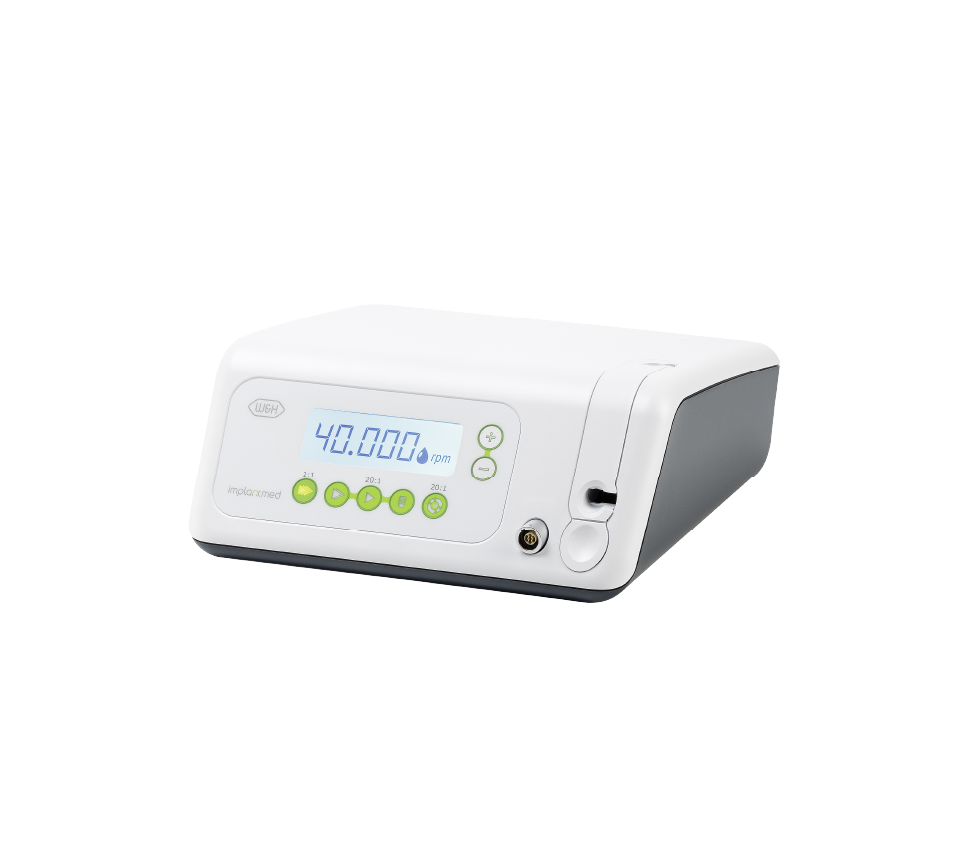

Implantmed Classic Console
Motor with Cable

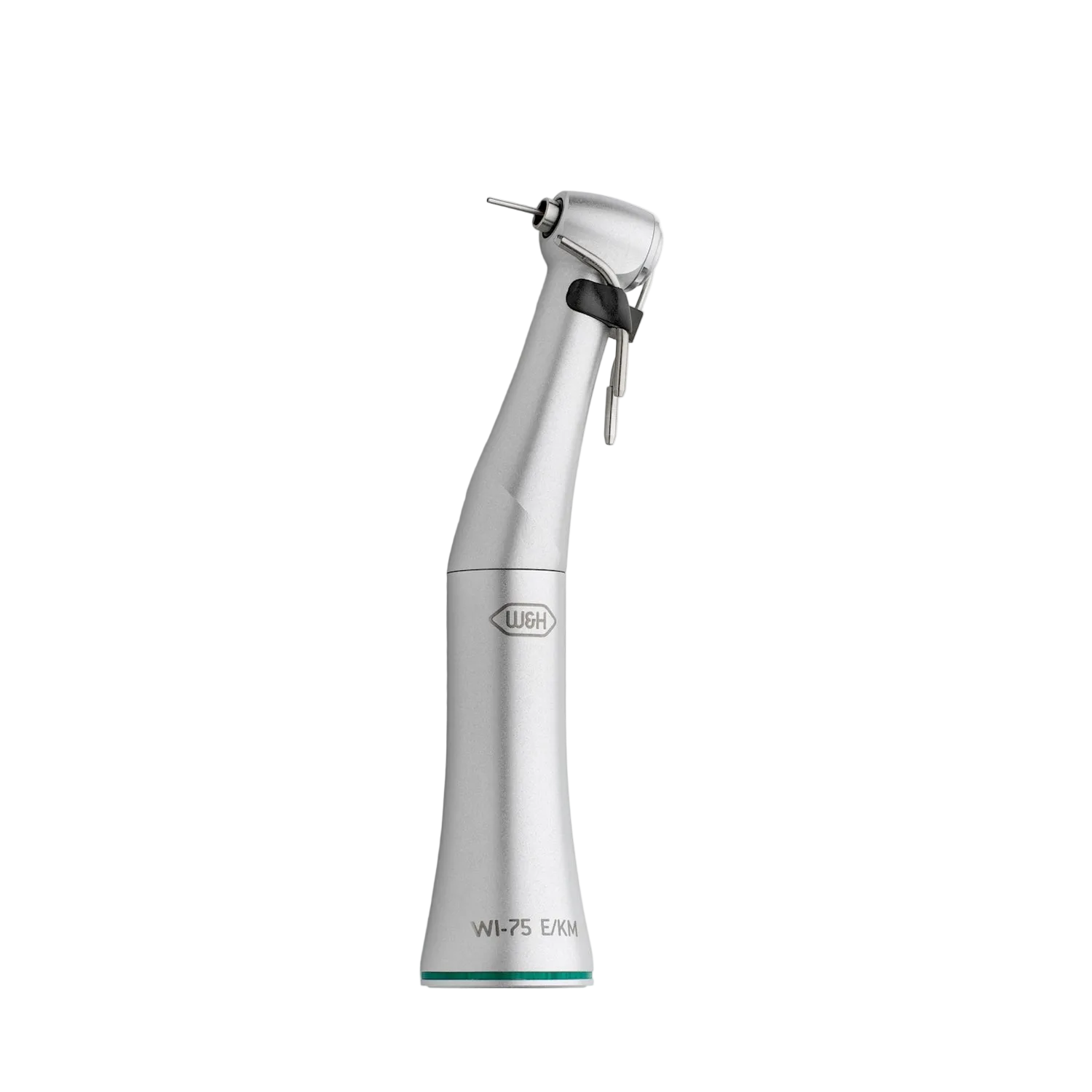

WI-75 E/KM Implant Handpiece
Wired Foot Pedal

Irrigation Stand
Motor Holder
Irrigation Tubings
Instruction for Use Manual
